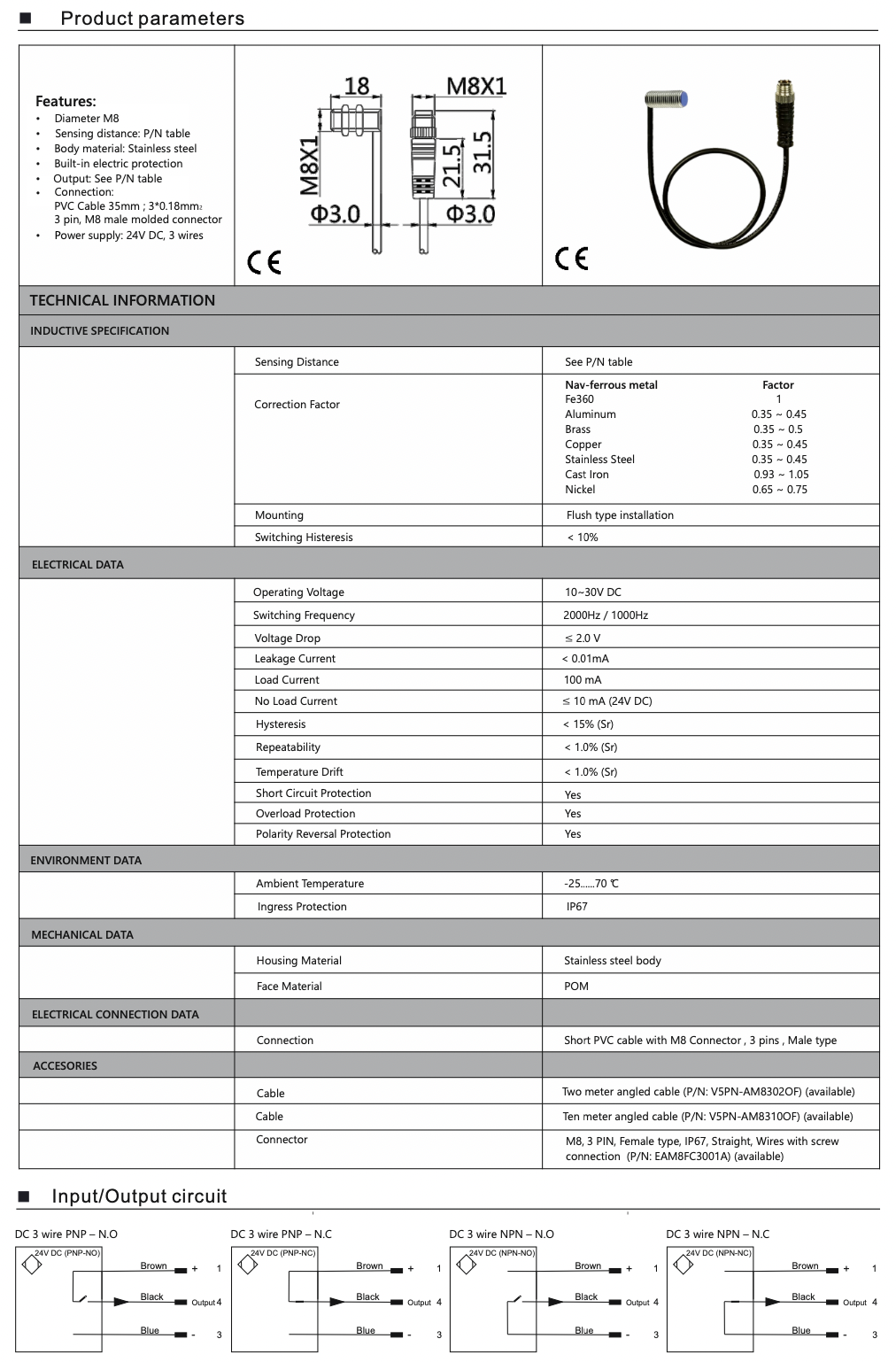

Product information

• High quality sensors series
• Space-saving installation and significant flexibility in machine design thanks to the compact size
• High positioning accuracy and precise switching behavior for reliable detection of fast handling and assembly processes
• Bright sensors led indicators for easy power and detection recognition
• High switching frequency
• Water proof stainless steel body design for high humidity stability IP67 degree protection

‍

‍Inductive sensor
When the metal conductive objects close to the magnetic field and reach the induction area, high-frequency alternating magnetic field generated by a LC oscillation circuit, which is composed of a coil wound on a ferrite, through the eddy current effect generated by internal of metal objects to achieve non-contact detection.

Special miniature sensors
Many engineers are often faced with a particular requirements to fit inductive sensors into tight spaces. The inductive sensors of the Miniature Series are fully integrated without external amplifier and our models were equipped with reverse polarity protection and short-circuit protected switcProduct information

• High quality sensors series
• Space-saving installation and significant flexibility in machine design thanks to the compact size
• High positioning accuracy and precise switching behavior for reliable detection of fast handling and assembly processes
• Bright sensors led indicators for easy power and detection recognition
• High switching frequency
• Water proof stainless steel body design for high humidity stability IP67 degree protection

‍

hing outputs. Also an optical switching indicator is always built-in.

Download documentation

‍

‍
