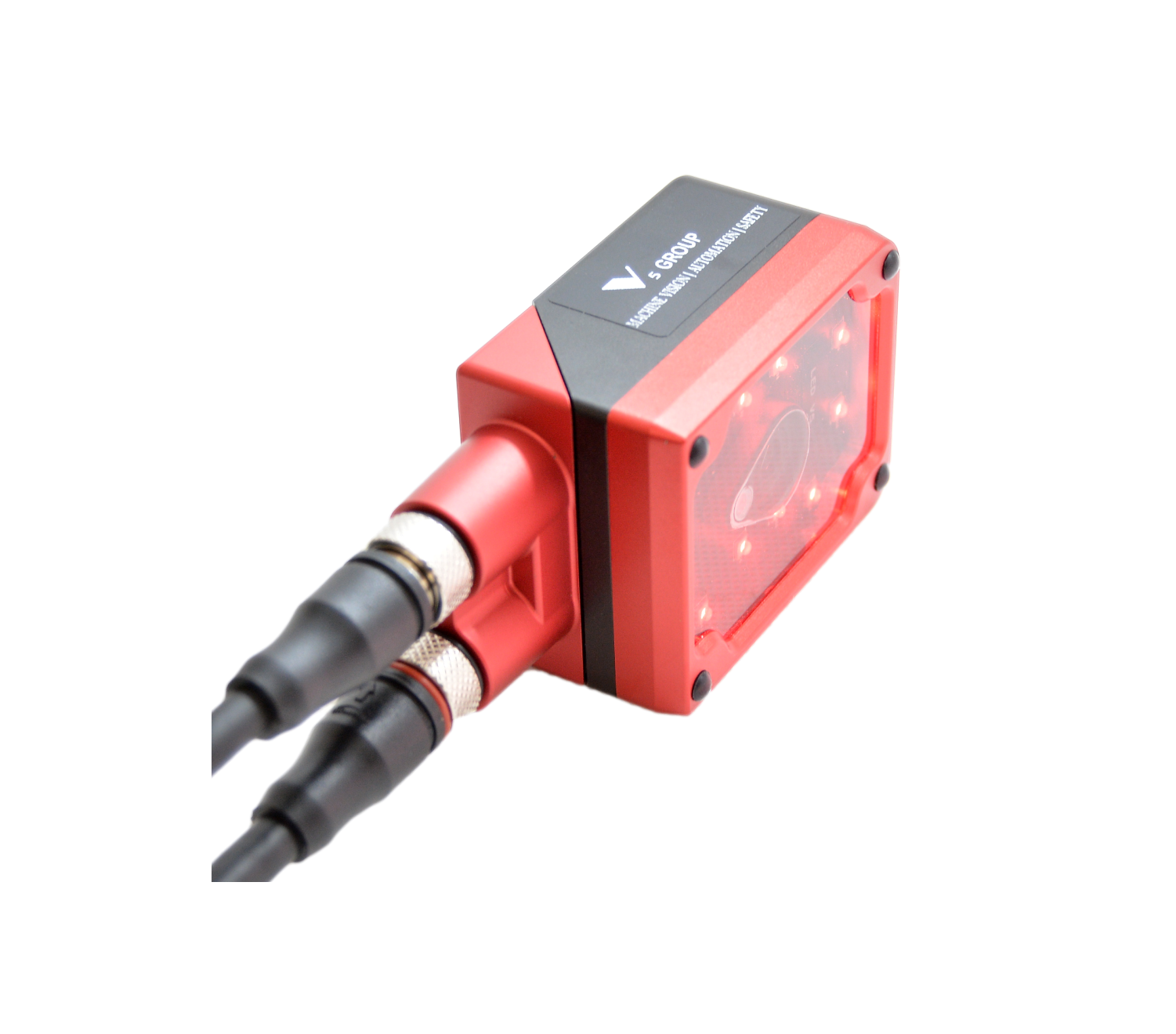

Fixed Datamatrix & Barcodes Scanner VL90

Description

VL90 is an industrial code reader with autofocus stability. 1.2 megapixel High Performance CMOS sensor, multiple lighting units and powerful image processing with decoding algorithm. Stable and reliable solution for High speed and frequency reading high stablity reading of high density Barcodes and DataMatrix

• Powerful image processing and decoding algorithm
• Easy to control and integrate design
• Multiple-lighting unit Visual configuration software
• Autofocus and auto-optimization of code reading parameters
• Barcodes and DataMatrix stable reading up to 60 fps speed

Download documentation

‍

Special integrated lighting
The design of array light source ensures the uniformity of light intensity in the field of vision.
The groups of area light source can be controlled independently to meet the requirements of different reading applications.
Three lighting colors could be selected, that is red, white, blue. For high reflective surface, polarization light source and atomization light source can be selected.
‍

‍
Auto focus and auto optimization of code reading
The built-in auto focus algorithm can automatically lock the focus distance according to reading requirement.
The built-in parameters auto-adjustment algorithm can automatically adjust and optimize the camera's parameters according to the site environment and focusing distance.
‍

‍
Powerful image processing and decoding algorithm
Read 1.6 mil high density bar code and 1.2 mm × 1.2 mm micro bar code.
Read up to 99 bar codes in the effective field of vision at one time.
Excellent reading performance for challenging barcodes such as stained, distorted, low contrast and DPM.
Meet the requirements of high frequency and high speed.
‍

‍
Visual setup software
Online image view, convenient for installation and deployment.
The graphical I / O logic setting interface facilitates the interaction with peripheral devices.
Configuration parameters of the device and the output data.
Windows version and Mac version are available.
‍

‍
Easy to control and integrate design
Multiple I/O interfaces, different operating modes and output modes can be easily configured.
Work together with ECS control box to realize the coordination of multiple devices, in order to meet the requirements of large field reading.
Development of light source, algorithm and communication protocol can be carried out according to customer requirements.
‍

‍
Industrial product standard
IP65 dust proof and waterproof grade.
Multiple I / O interfaces to meet industry standard.
Support industrial field communication protocol, and support both TCP\IP Ethernet and RS232 communication mods.
The chassis can rotate 90 degrees for easy installation in narrow space.

‍
