Color and mark sensor

Description

• Built in RGB three color light source, with color mode and mark mode
• The detection return difference can be adjustable, the effect of vibration of

the measured object can be eliminated

• The detection distance is 3 times as high as that of the similar color sensor
• Light spot size about 1.5*7mm (23mm detection distance)

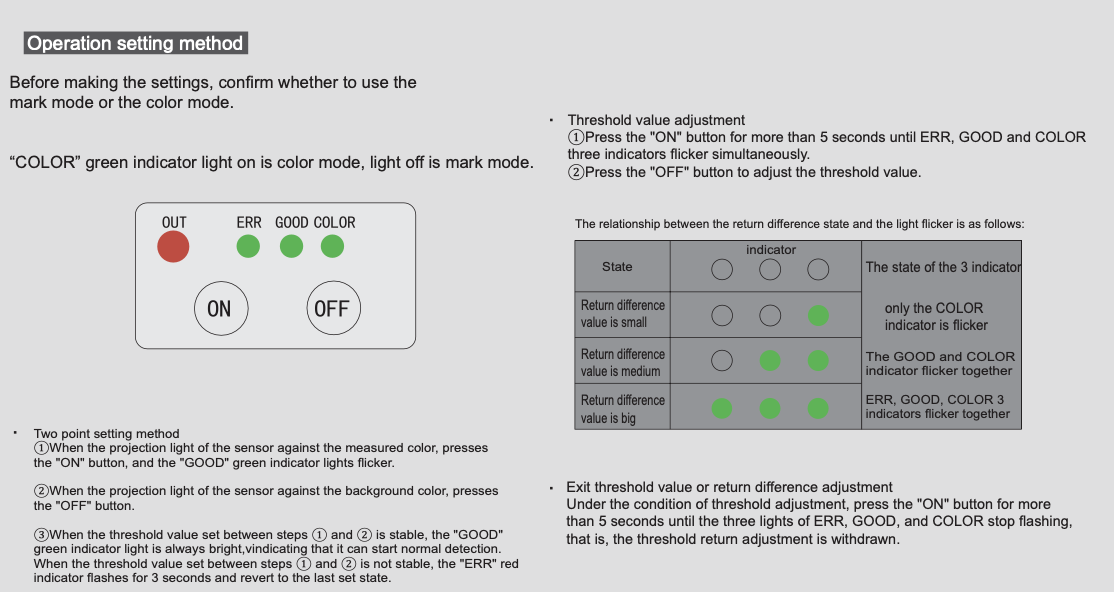

• Two point setting
• Small volume
• The unique dual mode, with color, color + light intensity detection function, will not be erroneous output in the detection of the edge without backgroundor the critical position without object, and the detection is more stable and reliable

‍Download documentation

‍

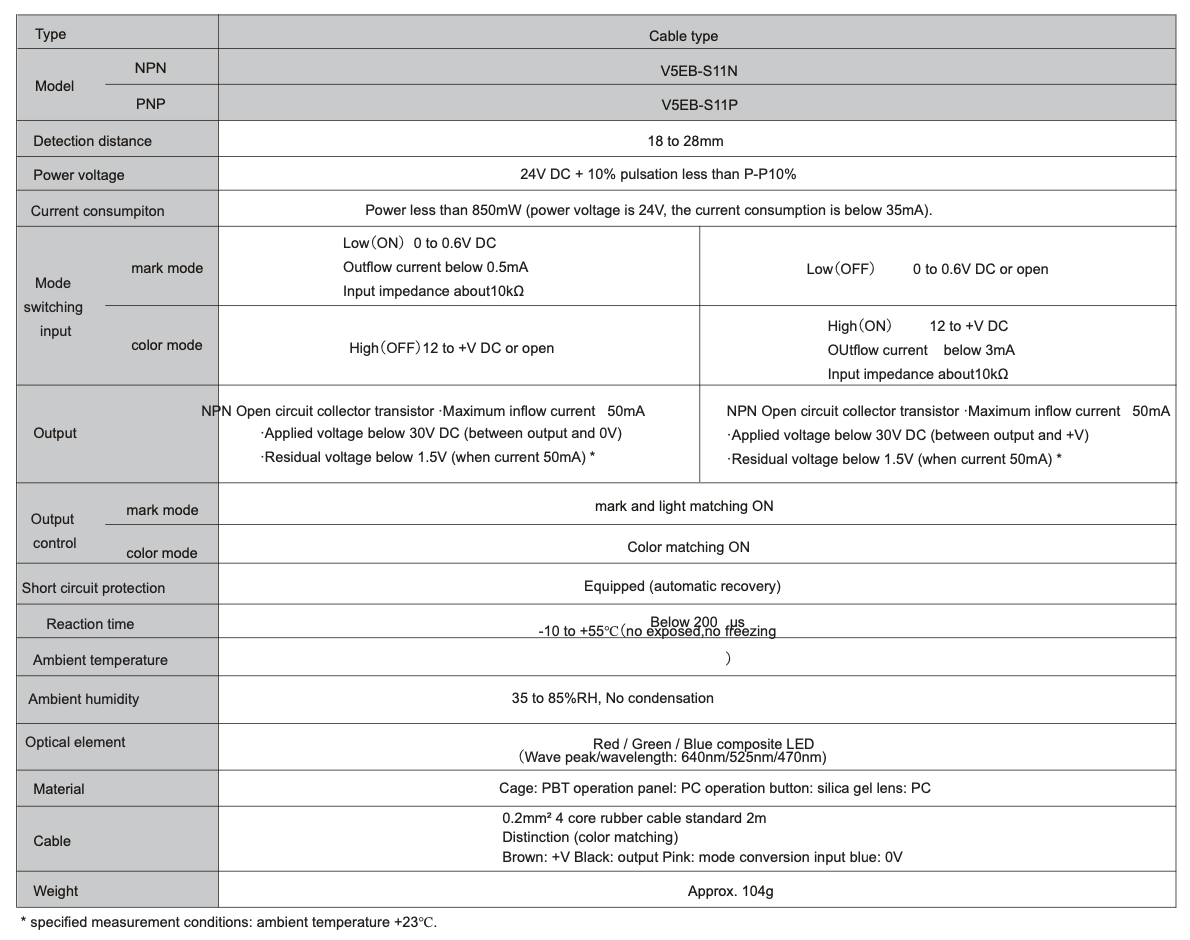

Type: Cable type

Detection distance: 18 to 28mm

Power voltage: 24V DC + 10% pulsation less than P-P10%

Current consumption: Power less than 850mW (power voltage is 24V, the current consumption is below 35mA)

Output control (mark mode): Mark and light matching ON

Output control (color mode): Color matching ON

Short circuit protection: Equipped (automatic recovery)

Reaction time: Below 200 μs

Ambient temperature: -10 to +55°C(no exposed,no freezing)

Ambient humidity: 35 to 85%RH, No condensation

Optical element: Red / Green / Blue composite LED (Wave peak/wavelength: 640nm/525nm/470nm)

Material: Cage: PBT operation panel: PC operation button: silica gel lens: PC

Cable: 0.2mm2 4 core rubber cable standard 2m Distinction (color matching) Brown: +V Black: output Pink: mode conversion input blue: 0V

Weight: Approx. 104g

‍
